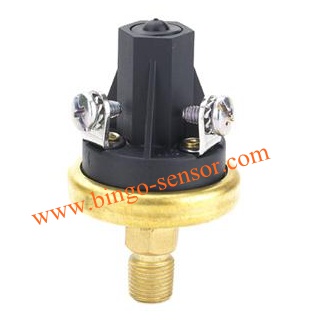

Vacuum pressure switch PS-M4V

| See more "Air,Gas Pressure Switch" Products

product category: Air,Gas Pressure Switch
Model: PS-M4V
Viewed:

OnLine Service :
Print this page E-mail Us
Live Messenger Skype Online

Product Detail

Vacuum pressure switch PS-M4V


Vacuum pressure switch PS-M4V is factory set and is offered with fluorosilicone diaphragm that makes it compatible with many fluids and gases. It has a variety of electrical connections and thread connections.



Model No.
Vacuum pressure switch PS-M4V
 Medium
Air
 Pressure Set Point
 Factory set from 1.1 to 22 in/Hg vacuum
 Max Operating Pressure
30 in/Hg vacuum
 Burst Pressure
150 PSI
 Operating Temperature Range
-40° C  ~ 120° C
 Switch Type
Direct action, blade contact
 Electric Rating
Resistive: 15 AMP- 6 VDC
               8 AMP- 12 VDC
               4 AMP- 24 VDC
Inductive: 1 AMP- 120 VAC
                  0.5 AMP- 240 VAC
 Contact Arrangement
 SPST-N.O., N.C. ; SPDT
 Terminals
 #8-32 screws, 1/4" blade, Metri-Pack
 Connection  1/8"NPT Male, 1/4"NPT Male, G1/8" Male, G1/4" Male
 Material
Contact: Silver alloy, gold plated
Base: Plated Steel;
Cover: Glass reinforced polyester
Diaphragm:Polyimide film (other materials is optional according to media)
 Options
 Base connector thread sizes; wire leads (potted & sealed);   N.O./N.O. dual circuit and N.C./N.C. dual circuit

Conversion: 1Kgf/cm2 = 14.2PSI ,  1Bar = 14.5PSI
