Product Detail
PCB mounted Air&gas pressure switch PS-LA5
PCB mounted air&gas pressure switch PS-LA5 is designed as an economical interface between pressure systems and Printed Circuit Boards. This switch can be used as a gauge for differential pressure with almost no hysteresis. It is applied to detect both positive and negative pressure. Rotatable pressure port and various terminal styles with wire leads are the main feature.
| Model | PS-LA5 |
| Medium | Non-hazardous gas only (air) |
| Electrical feature | 1 Pole NO |
| Electrical rating | 250 mA 250 V~ |
| Ambient temperature | -10°C~+90°C |
| Pressure Range | Positive: 5 ~800 mbar (Max. 1000 mbar) |
| Negtive: 10 ~ 800 mbar (Max. 1000 mbar) | |
| Membrane material | Silicone (Nitrile, EPDM, Perbunan on request) |

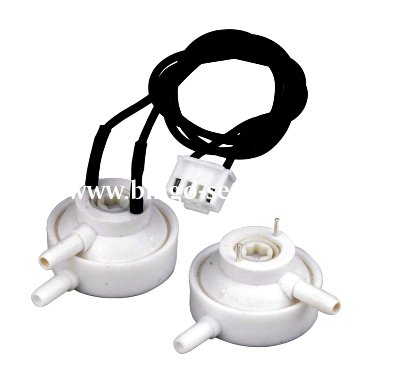

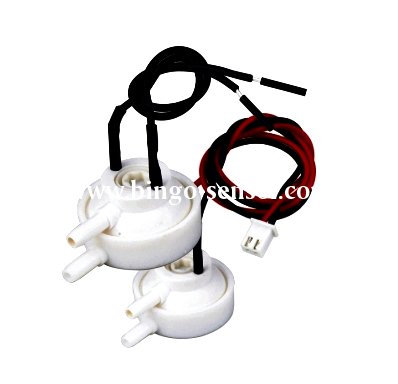

| Electrical connections | Solder pins 1.0 mm, 12.5mm distance between each other pin; or with different type wire leads and terminals on request. |
| Pressure connections | Inlet 4.0 mm or 5.0 mm for tube connection |
Conversion: 1mbar = 100 Pa 1 in/H2O= 249 Pa
If you need PCB mounted air&gas pressure switch PS-LA6, please feel free to contact us for price by submitting "more information" as below !
