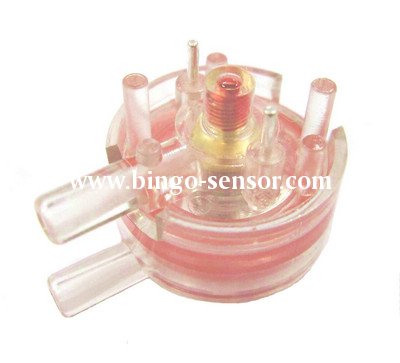

  • Low pressure switch PS-LA6-positive pressure back_2
  • negtive Low pressure switch PS-LA6 connecter

Vacuum cleaner pressure switch PCB mounted PS-LA6

| See more "Air,Gas Pressure Switch" Products

product category: Air,Gas Pressure Switch
Model: PS-LA6
Viewed:

OnLine Service :
Print this page E-mail Us
Live Messenger Skype Online

Product Detail

Vacuum cleaner pressure switch PCB Mounted PS-LA6


Vacuum cleaner pressure switch PCB mounted PS-LA6  is designed to detect both negative and positive pressure,such as the family vacuum cleaner. It is provided with solder pin connections and is especially designed for mounting on "Printed Circuit Boards", as well as connecting with different wire leads, terminals and sockets. It is considered as an economical interface between pressure systems and Printed Circuit Boards with almost no hysteresis.


Model Vacuum cleaner pressure switch PS-LA6
Medium Non-hazardous gas only (air)
Electrical feature 1 pole NO
Electrical rating 20mA, 120/250V
Ambient temperature -10~95°C
Pressure Range Positive: 10mbar ~ 600mbar  (Max. 800 mbar)
Negtive:  10mbar ~ 800mbar  (Max. 1000 mbar)
Electrical connection Solder pins 1.0 mm, 10mm distance between each other pin; or with different type wire leads and terminals on request.
Pressure connection Inlet 4.0 mm for tube connection

Conversion: 1mbar = 100 Pa     1 in/H2O= 249 Pa

If you need Vacuum cleaner pressure switch PCB mounted PS-LA6, please feel free to contact us for price by submitting "more information" as below !
