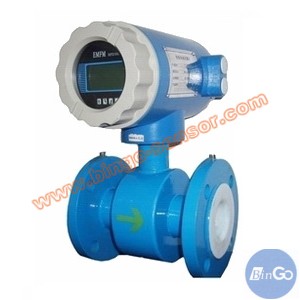

Smart Electromagnetic Flow Meter
| See more "Electromagnetic Flow Meter" Products
product category: Electromagnetic Flow Meter
Model:
Viewed:
| OnLine Service : | |
 Print this page |
 E-mail Us |
 Live Messenger |
 Skype Online |
Product Detail
Main Features
Flow Range
Drawing
| Item The Specifications of electromagnetic flowmeter | |
| Measuring fluid | Conductive fluid |
| Caliber | DN10-DN600 |
| Electrode materials | Mo2Ti HC HB Pt Ta Ti |
| Lining Material | PTFE, PFA (resistance to negative pressure), chloroprene rubber, polyurethane, hard rubber (optional conductive ground rubber ≥ DN125) |
| Electrode Type | Standard type 316L, scraper-type (DN ≥ 50) |
| Dielectric conductivity | > 5μs/cm (water> 20μs/cm) |
| Accuracy grade | ±0.5% RS. |
| Repeatability | ±0.1% |
| Flow Range | 0.3—15m/s |
| Maximum temperature of medium |
Ordinary rubber Lining Material：-20~+60℃ High temperature rubber Lining Material：-20~+90℃ PTFE Lining Material：-30~+100℃ High temperature PTFE Lining Material：-30~+180℃ |
| Temperature | -25 - 60℃ |
| Working pressure |
DN10—DN65：≤2.5Mpa, DN80—DN150：≤1.6Mpa, DN200—DN1200：≤1.0Mpa |
| Protection Level | IP65, IP68 |
| Output | 4-20mA current output ,0-1kHz frequency output, pulse output per unit volume |
| Power | 85~265V， 45~63HZ |
| Standard | Q/SMAU2-2006 |
| Auxiliary converter | BF900C/F |
| Flange | National standard GB9119-88 ANSI, JIS |
| Installation Type | Split, integrated |
Flow Range
| DN（mm） | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 |
|
Qmin(m3/h) Qmax(m3/h) |
0.0283 4.24 |
0.0636 9.54 |
0.12 16.96 |
0.176 26.5 |
0.29 43.42 |
0.452 67.85 |
0.7 106.0 |
1.19 179.0 |
| DN（mm） | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
|
Qmin(m3/h) Qmax(m3/h) |
1.8 271.0 |
2.28 424.0 |
4.41 662.0 |
6.36 954.0 |
11.3 1690 |
17.6 2650 |
25.4 3810 |
34.6 5190 |
| DN（mm） | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 900 |
|
Qmin(m3/h) Qmax(m3/h) |
45.2 6780 |
57.2 8570 |
77.6 10600 |
85.8 12800 |
101.0 15200 |
138.0 20700 |
180.0 27100 |
229.0 34300 |
| DN（mm） | 1000 | 1100 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 |
|
Qmin(m3/h) Qmax(m3/h) |
282.0 42400 |
342.0 51300 |
407.0 61000 |
554.1 83121 |
732.7 108566 |
916.0 137404 |
1131.0 169635 |
1368.4 205258 |
| DN | a | D | Do | n*A |
| 10 | 230 | 90 | 60 | 4*14 |
| 15 | 230 | 95 | 65 | 4*14 |
| 20 | 230 | 105 | 75 | 4*14 |
| 25 | 230 | 115 | 85 | 4*14 |
| 32 | 230 | 140 | 100 | 4*18 |
| 40 | 230 | 150 | 110 | 4*18 |
| 50 | 230 | 165 | 125 | 4*18 |
| 65 | 230 | 185 | 145 | 4*18 |
| 80 | 230 | 200 | 160 | 8*18 |
| 100 | 230 | 220 | 180 | 8*18 |
| 125 | 280 | 250 | 210 | 8*18 |
| 150 | 280 | 285 | 240 | 8*22 |
| 200 | 310 | 340 | 295 | 8*22 |
| 250 | 360 | 395 | 350 | 12*22 |
| 300 | 460 | 445 | 400 | 12*22 |
| 350 | 460 | 505 | 460 | 16*22 |
| 400 | 460 | 565 | 515 | 16*26 |
| 450 | 460 | 615 | 565 | 20*26 |
| 500 | 600 | 670 | 620 | 20*26 |
| 600 | 600 | 780 | 725 | 20*30 |
| 700 | 700 | 895 | 840 | 24*30 |
| 800 | 800 | 1015 | 950 | 24*33 |
| 900 | 900 | 1115 | 1050 | 28*33 |
| 1000 | 1000 | 1230 | 1160 | 28*36 |
| 1200 | 1200 | 1405 | 1340 | 32*33 |
| 1400 | 1400 | 1630 | 1560 | 36*36 |
| 1600 | 1600 | 1830 | 1760 | 40*36 |
| 1800 | 1800 | 2045 | 1970 | 44*39 |
| 2000 | 2000 | 2265 | 2180 | 48*42 |
| 2200 | 2200 | 2405 | 2315 | 52*45 |
