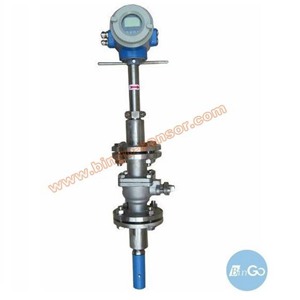

Plug-in Electromagnetic Flow Meter
| See more "Electromagnetic Flow Meter" Products
product category: Electromagnetic Flow Meter
Model:
Viewed:
| OnLine Service : | |
 Print this page |
 E-mail Us |
 Live Messenger |
 Skype Online |
Product Detail
Introduction
Plug-in electromagnetic flow meter sensor with dual electrode design (some brands use
a single electrode, is to measure voltage, highly vulnerable to interference) and the
differential amplifier measurements, so the anti-interference ratio (CMRR) of up to 120dB,
dual-electrode sensor design (some brands use a single electrode, is to measure voltage,
highly vulnerable to interference) and the differential amplifier measurements, so the
anti-interference ratio (CMRR) of up to 120dB.
Feature
1. The flowmeter is compliant to Standard “JB/T 9248-1999 Electromagnetic Flow Meter”.
2. Maximum flow speed: 15m/s
3. DN size: 3, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 150, 200, 250, 300, 350, 400, 450,
500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000
4. Accuracy: 0.5%, 0.2%
5. NominalPressure:4.0MPa(DN0-150) 1.6MPa(DN200-600) 1.0MPa(DN700-1200)
0.6MPa(DN400-2000) Or other specified by order
6. Materials
Electrode Forms and Materials:5. NominalPressure:4.0MPa(DN0-150) 1.6MPa(DN200-600) 1.0MPa(DN700-1200)
0.6MPa(DN400-2000) Or other specified by order
6. Materials
Electrode design has four forms: standard form, scraper form, detachable form and
grounding electrode.
Electrode material is selectable from stainless steel containing Mo, stainless steel
coated with carbonized tungsten, Hastelloy B, Hastelloy C, Titanium, Tantalum and
platinum-iridium alloy.
Flange material: carbon steel
Grounding ring: stainless steel
Inlet protection ring: carbon steel, stainless steel
7. Enclosure
IP65:
IP68: only available for remote-type sensor with neoprene or polyurethane liner,
not including flameproof model.
Technical Specification
| Item The Specifications of electromagnetic flow meter | |
| Measuring fluid | conductive fluid |
| Caliber | DN25-800 |
| Electrode materials | Mo2TiHC |
| Lining Material | PTFE, neoprene rubber, polyurethane |
| Electrode Type | Standard |
| Dielectric conductivity | > 5μs/cm (water> 20μs/cm) |
| Accuracy grade | ±0.5%RS |
| Repeatability | ±0.1% |
| Flow Range | 0-12m/s |
| Maximum temperature of medium | A size ≤ 90 , min size ≤ 180 (rubber ≤ 65 ) |
| Temperature | -40 --- 65 |
| Working pressure | 16Mpa 26Mpa 32Mpa |
| Protection Level | IP65, IP67, IP68 (optional) |
| Output | 4-20mA current output ,0-1kHz frequency output, pulse output per unit volume |
| Power | 220VAC 110VAC |
| Standard | Q/SMAU2-2006 |
| Communications | RS485/Modbus PROFIBUS DP or HART |
| Auxiliary converter | BFC-090-B |
| Languages | English or Chinese |
| Flange | National standard GB9115, ANSI, JIS |
| Installation Type | Split, integrated |
