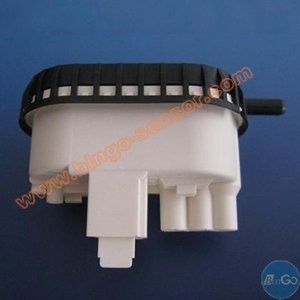

  • Multi-medium pressure switch PS-M15_2
  • Multi-medium pressure switch PS-M15_3
  • Multi-medium pressure switch PS-M15_4

Multi-medium pressure switch PS-M15

| See more "Multi Medium Pressure Switch" Products

product category: Multi Medium Pressure Switch
Model: PS-M15

OnLine Service :
Print this page E-mail Us
Live Messenger Skype Online

Product Detail

Multi-medium pressure switch PS-M15

The Multi-medium pressure switch PS-M15 incorporates a new compact design and is
well-suited to today’s low and mid-range washing machines and dishwashers requiring
single level control.
The Multi-medium pressure switch PS-M15 is also suitable for the use with either hybrid
or full electronic controls. The switch allows quick installation and combines with high
performance for accurate fills to ensure low water level and energy consumption, with
overflow and dry heater safety.

Functions One level and one overflow protection (optional)
Heater-safety contact is always present
Levels Make pressure 50 to 400 mm W.C.
Break pressure 20 to 350 mm W.C.
differential Min 15 mm W.C.; Max 110 mm W.C.
Overflow pressure 150 to 600mm W.C.
Electrical ratings ENEC and CQC Approved 16(4)A @125/250V-Main contacts NO
4(4)A @125/250V-Main contacts NC
1(1)A @125/250V-Overflow protection
UL Approved 16A, 1/2HP@125/250V-Main contacts NO
4A, 1/3HP@125/250V-Main contacts NC
1A @125/250V-Overflow protection
Tolerance Make/Break Set-point: ±5mm W.C. standard
Lower tolerance available on request Overflow protection: ±15mm W.C. standard
Contacts Main contact SPDT snap action contact
Overflow protection contact Slow action contact, which is normally open
Terminals 6.35x0.80 according to IEC 760
Group connector Rast 5/Rast 2.5
Single connector using Rast 5 Code (Without additional isolation)
Mounting Standard screw mounting
Snap-fixation mounting
Others on demand
Pressure connection position Two positions for choice
Other positions for tailor-made
Operating temperature Maximum 85 ℃
Relative humidity Maximum 95% at 40℃

If you need Multi-medium pressure switch PS-M15, please feel free to contact us for price by submitting "more information" as below !
