Multi-medium pressure switch PS-M3
| See more "Multi Medium Pressure Switch" Products
product category: Multi Medium Pressure Switch

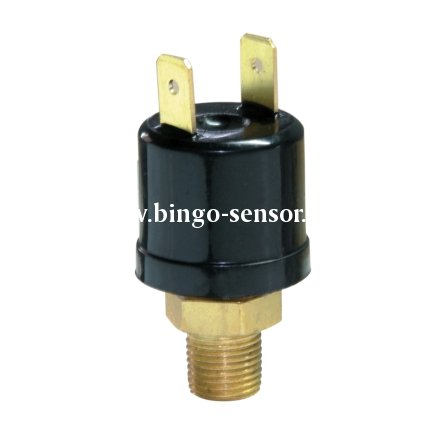

Model: PS-M3
Viewed:
| OnLine Service : | |
 Print this page |
 E-mail Us |
 Live Messenger |
 Skype Online |
PS-M3 is designed as automatic Reset Pressure switch, which has wide range of pressure settings & meet a board variety of application.
Normally, it's used as pressure controlling of Air, Water, Internal wiring of electric refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems.
Typical Applications: safety controls / air conditioning / refrigeration.
| Model No. | PS-M3 |
| Media |
Air, Water, motor oils, transmission oils, hydrocarbon medium, refrigeration fluid |
| Pressure Set Point | actuation from 0.2 to 45 Bar |
| Proof Pressure | 45 Bar |
| Burst Pressure | 100 Bar |
| Operating Temperature Range | -30° C to ~ 80° C |
| Switch Type |
SPST- NC, SPST-NO Auto reset and
Manual reset
|
| Electric Rating |
120/240VAC, 375VA;
120VAC,5.8FLA-34.8LRA;
240VAC,2.9FLA-15LRA;
24VAC/DC, 2A;
|
| Dielectric Strength |
750 Vrms across open contacts 1550 Vrms terminals to fitting |
| Terminals | 1/4” blade, wire lead |
| Life at Related Load | 100,000 cycles |
| Connection | 1/8NPT, G1/8", 1/4NPT, G1/4", 7/16-20 UNF, etc. |
| Options | various connector thread sizes; wire leads (potted & sealed); protective cover. |
