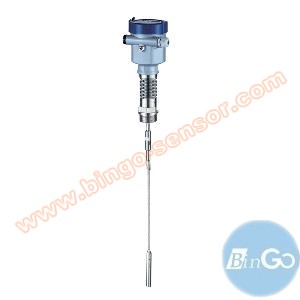

Guided Wave Radar Level Transmitter LT-RG04

| See more "Radar Level Transmitter" Products

product category: Radar Level Transmitter
Model: LT-RG04
Viewed:

OnLine Service :
Print this page E-mail Us
Live Messenger Skype Online

Product Detail

Guided Wave Radar Level Transmitter LT-RG04


Guided wave radar level transmitter transmits high frequency microwave pulses , which travels along the detecting component(steel rope or rod) and reflects when veaching the liquid/material surface.
The time interval between pulse emission and reception is in direct proportional to the distance between the surface of target medium and reference plane on the instrument.


1. Our Guided wave radar level transmitter equipped with advanced microprocessor and unique EchoDiscovery echo processing technology. It can be used in complex hazardous process condition.
2. It is with extremely low emission power, can be mounted on various metal or non-metal vessels. Harmless towards the environment and human beings.
3. There are multiple options available in choosing various process connection and detecting component, which enables Guided wave radar level
transmitter to be applied in a broad extent of applications, such as high temperature, high pressure, medium with small dielectric constant and etc..


Model Guided wave radar level transmitter LT-RG04
Application liquid, solid particle
Max. Measuring Range Rope: 30m / Rod: 6M
Processing Connection G1/2''A / G2''A / 1.5'' NPT
Working Temp -40~200℃
Working Pressure -0.1-4MPa
Accuracy ±10mm
Detection Component material Stainless steel 316L/Chinaware
Power 2-wire (DC24V)
4-wire(DC24V/AC220V)
Signal Output 4…20mA(two-wire)/HART

If you need Guided wave radar level transmitter LT-RG04, please feel free to contact us for price by submitting "more information" as below!
