Top quality air compressor pressure switch PS-A21

| See more "Air Compressor Pressure Switch" Products

product category: Air Compressor Pressure Switch
Model: PS-A21
Viewed:

OnLine Service :
Print this page E-mail Us
Live Messenger Skype Online

Product Detail

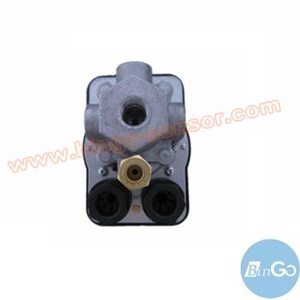

Air compressor pressure Switch PS-A21


Air Compressor Pressure Switch PS-A21 is used to regulate the tank pressure between
two preset  values(up to 175 psi) electrically driven air compressors. It is available with an
unloading valve, which prevents compressors from starting while overloading, and it is
available with an On-Off knob for manual cut off the compressor. The design allows the
unloading valve to be rotated into eight different positions.
Four ports connection makes it easy to connect with safety valve and pressure gauges.

Model PS-A21
Rated Voltage / Frequency 240V/50Hz;   120V/60Hz
Rated Current / Power 17A/3HP;   20A/1.5HP
Max. Pressure 175PSI
Min. Pressure 20PSI
General Pressure Setting 90-125PSI
Inlet Base One way or four way
Inlet Connection Thread NPT1/4’

G1/4 (BSP 1/4) Male or Female pipe fitting are available.
Conversion: 1Kgf/cm2 = 14.2PSI  ,  1bar = 14.5PSI

If you need Air compressor pressure switch PS-A21,  please freel free to contact us for price by submitting "more information" as below !
