Product Detail

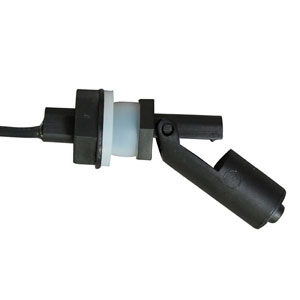

PP Horizontal Float Switch LS-HP07
The working principle of Horizontal Float Switch is direct and simple.Set one point or multi-point
of magnetic switch in sealed un-magnetic metal or industrial plastic tube.Fix the float with inner
magnetic system to a certain place of magnetic switch in the pipe and let the float drift up and
down;utilize the inner magnetic system in the float to trigger the open and close of magnetic
switch to operate and control the liquid level.Normal open and normal close is the state with
inserting liquid.Mini float level switch is custom-made product and the switch state can shift in
normal condition.Mini float level switch is widely used in level control and alarm of all kinds of
industry such as electronic,electric power, chemical, watertreatment,water supply and
drainage due to its low price,reliable performance and flexible installation method.
If you need PP Horizontal Float Switch LS-HP07, please feel free to contact us for price by submitting "more information" as below !
The working principle of Horizontal Float Switch is direct and simple.Set one point or multi-point
of magnetic switch in sealed un-magnetic metal or industrial plastic tube.Fix the float with inner
magnetic system to a certain place of magnetic switch in the pipe and let the float drift up and
down;utilize the inner magnetic system in the float to trigger the open and close of magnetic
switch to operate and control the liquid level.Normal open and normal close is the state with
inserting liquid.Mini float level switch is custom-made product and the switch state can shift in
normal condition.Mini float level switch is widely used in level control and alarm of all kinds of
industry such as electronic,electric power, chemical, watertreatment,water supply and
drainage due to its low price,reliable performance and flexible installation method.
| Product Name | Horizontal Float Switch |
| Contact Capacity | AC220V/1A; DC24V/0.5A |
| Working Pressure | ≤0.5MPa |
| Float Gravity | 0.7 |
| Output Signal | SPST NO/NC |
| Working Temperature | -20~80℃ |
| Protection Grade | IP68 |
| Float Material | PP |
| Housing Material | PP |
| Wire Length | 500±10mm |
| Installation Method | horizontal installation |
| Explosion-proof | No |
| Connection | M16 |
