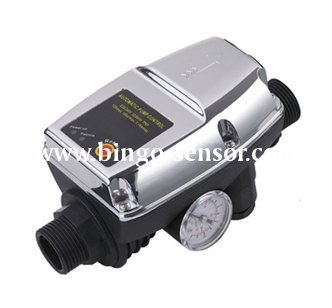

/uploads/allimg/water_pump/electronic/Automatic_water_pump_controller PS-WE40-1.jpg

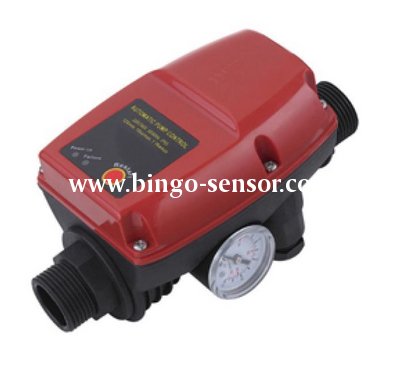

  • Automatic Water Pump Controller PS-WE40-1

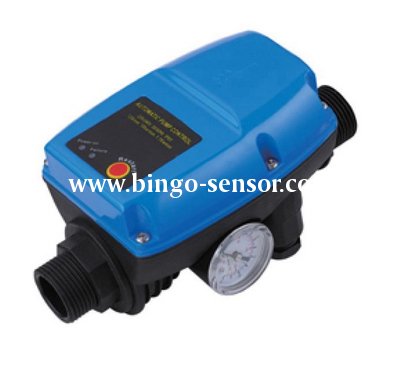

  • Automatic Water Pump Controller PS-WE40-2
  • Automatic Water Pump Controller PS-WE40-3

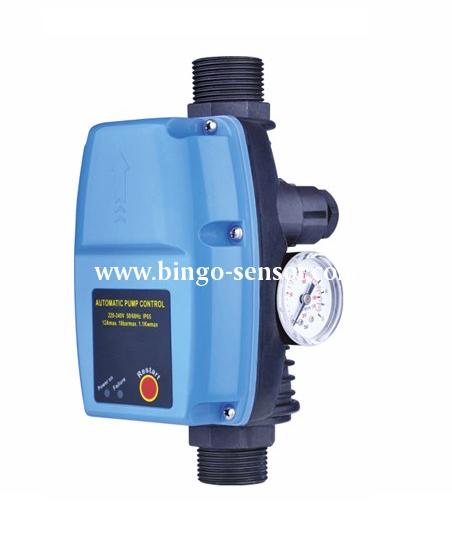

  • Automatic Water Pump Controller PS-WE40-4

Automatic Water Pump Controller PS-WE40

| See more "Electronic Type" Products

product category: Electronic Type
Model: PS-WE40
Viewed:

OnLine Service :
Print this page E-mail Us
Live Messenger Skype Online

Product Detail

1. Electric switch used in water systems.
2. It starts the electric pump automatically after a pressure decrease(taps opening)
    and stops it when the fluid flow interrupts at the maximum pressure level of the
    electric pump(taps closed).
3. Starting pressure is adjustable during installation, adjustment range: 1.0bar-3.5bar.
4. Joint screw: G1"male.
5. Completely replaced traditional pump control system composed of pressure switch,
    pressure tank and check valve, etc.
6. Stop the water pump in the case of water shortage.
7. Automatic reset after a stop caused by dry running, standard time-interval 60min/1 test.
8. Customized setting.



1. Staring Pressure:  1.5bar or 2.2bar
2. Rated Current:  Max. 10A
3. Allowable Pressure: Max. 10bar
4. Rated Voltage: 110V-120V or 220V-240V
5. Frequency: 50/60HZ
6. Ambient Temperature:  Max. 60℃
7. Protection Degree:  IP65


1. Color.
2. G1"plastic pipe joint for a quick connection to water pump.
3. Power cable length can choose according to customers’ needs.



CTN SIZE(cm) 42*32.5*21.5
PCS/CTN 12
N.W.(KGS)   6.12
G.W.(KGS) 8.62
